Lectrotab Trim Tabs 9×12 Kit

Lectrotab Trim Tabs 9×12 Kit

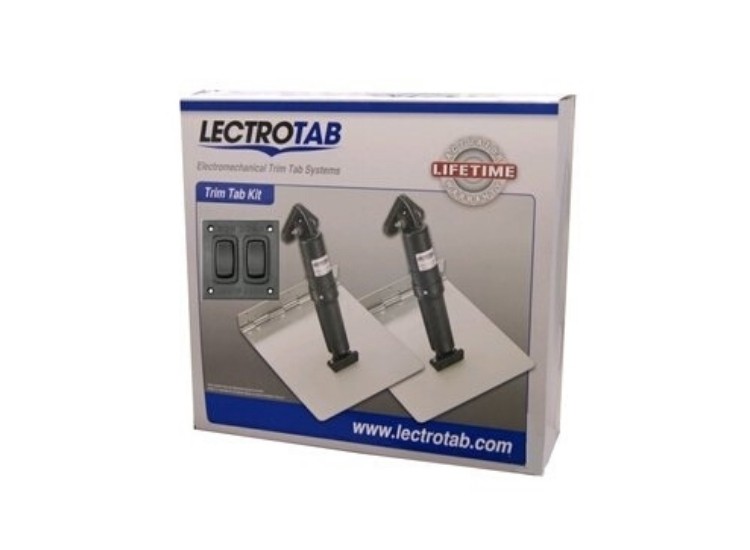

All Lectrotab actuators are covered by a worldwide lifetime warranty. Comes complete with 2 of S/S 9×12 plates with actuators & Rocker Switch.

$1,240$1,650

Description

All Lectrotab actuators are covered by a worldwide lifetime warranty. Comes complete with 2 of S/S 9×12 plates with actuators & Rocker Switch. These are a short Ram system.

Lectrotab designs and manufactures premium quality electromechanical trim tab systems for the leisure and commercial marine markets. The Lectrotab system is easy to install on new boats or to replace existing trim tabs.

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel and are available in standard finish (as shown), mirror finished stainless steel, or black powder coated stainless steel. Standard tabs are available in 9″ (23cm) or larger on request.

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket. Actuators come in 12 and 24 VDC with 8 second recommended stroke time or 4 second stroke time.

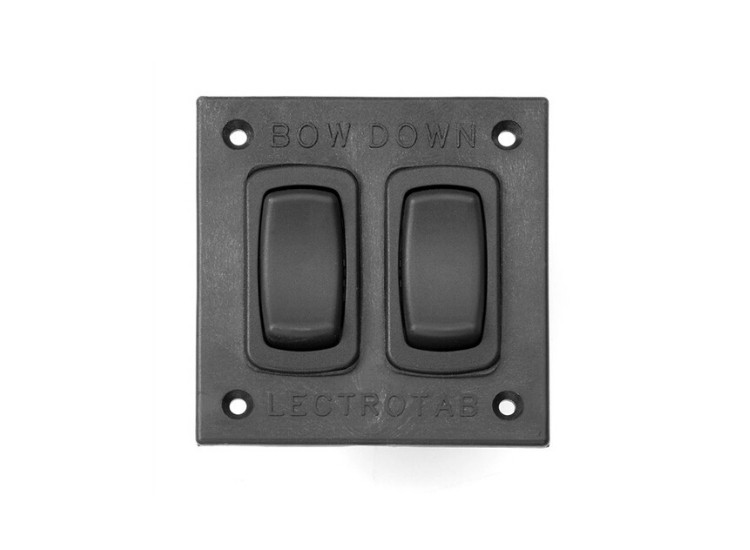

Lectrotab’s new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Rocker switch controls are available in either flat or bat handle style. They are specially designed to provide and “instant stop” circuit when the switches are released, thus preventing actuator over-run. This control can be upgraded with an LED tab position indicator. The gasket sealed switch is designed to prevent water entry. The control switch is self-contained and does not require an additional control box. Switches are available for single or dual station applications.

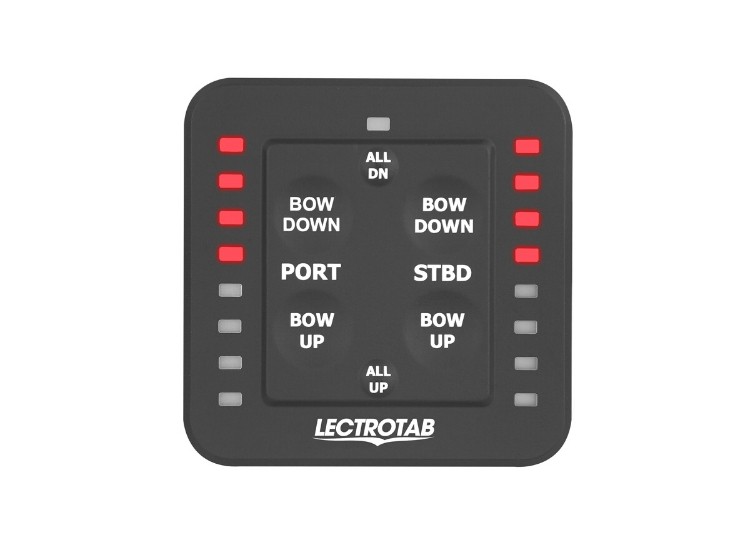

Upgrade to LED Controller
